Motor Protection

Load Reactor

Fin930

Load Reactor

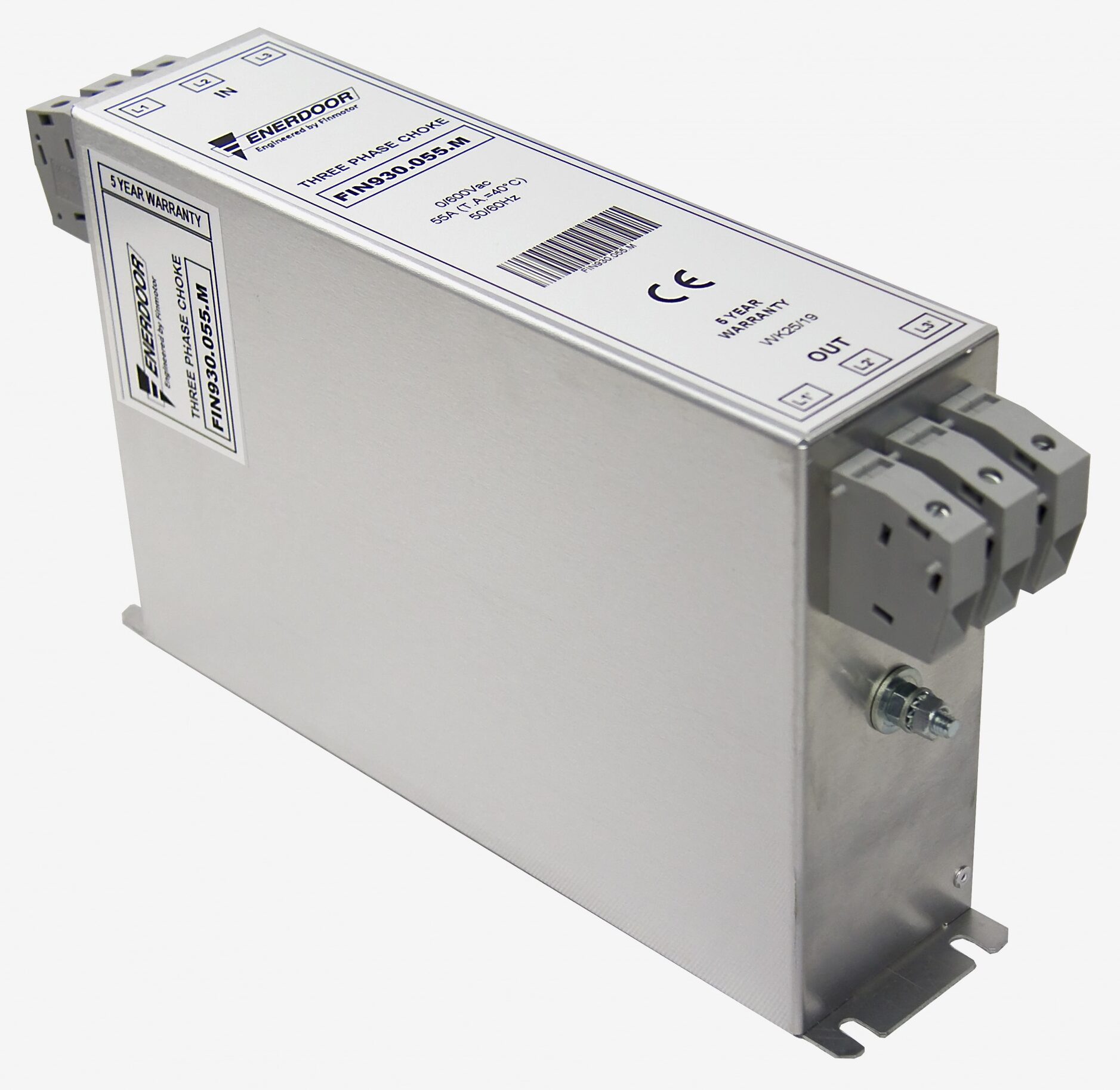

FIN930 Common Inductance

Common mode choke with very high attenuation
for reducing dV/dt

Fin930
  • Fin930

Features

  • Rated current from 6 to 200A
  • Nominal voltage 600 Vac
  • Low impedance
  • Safety terminal block connectors

Benefits

  • 5 Year warranty
  • Reduces dV/dt
  • Increases motor life
  • Protects against voltage spikes on the motor
  • Helps comply with conducted and radiated emission EMC Standards

Download Datasheet

EN
Request info

Approvals

Markets - Fin930 Load Reactor

Applications - Fin930 Load Reactor

Solutions - Fin930 Load Reactor

Fin930 Voltage (VAC) Current (A) Width (mm) Depth (mm) Height (mm) Weight (kg) Case Download
.006.M 600 6 50 226 140 1,7 1 Drawings

Enter your email
.012.M 600 12 50 226 140 1.7 1 Drawings

Enter your email
.016.M 600 16 60 267 177 1.7 1 Drawings

Enter your email
.025.M 600 25 60 267 177 2,3 1 Drawings

Enter your email
.032.M 600 32 60 267 177 2,3 1 Drawings

Enter your email
.042.M 600 42 70 295 177 3,4 1 Drawings

Enter your email
.055.M 600 55 70 295 177 3,4 1 Drawings

Enter your email
.070.M 600 70 80 390 205 6 1 Drawings

Enter your email
.080.M 600 80 80 390 205 6 1 Drawings

Enter your email
.100.M 600 100 80 390 205 7,1 1 Drawings

Enter your email
.115.M 600 115 80 390 205 7,1 1 Drawings

Enter your email
.150.M 600 150 105 420 220 8,5 1 Drawings

Enter your email
.200.M 600 200 105 420 220 8,5 1 Drawings

Enter your email
